توضیحات

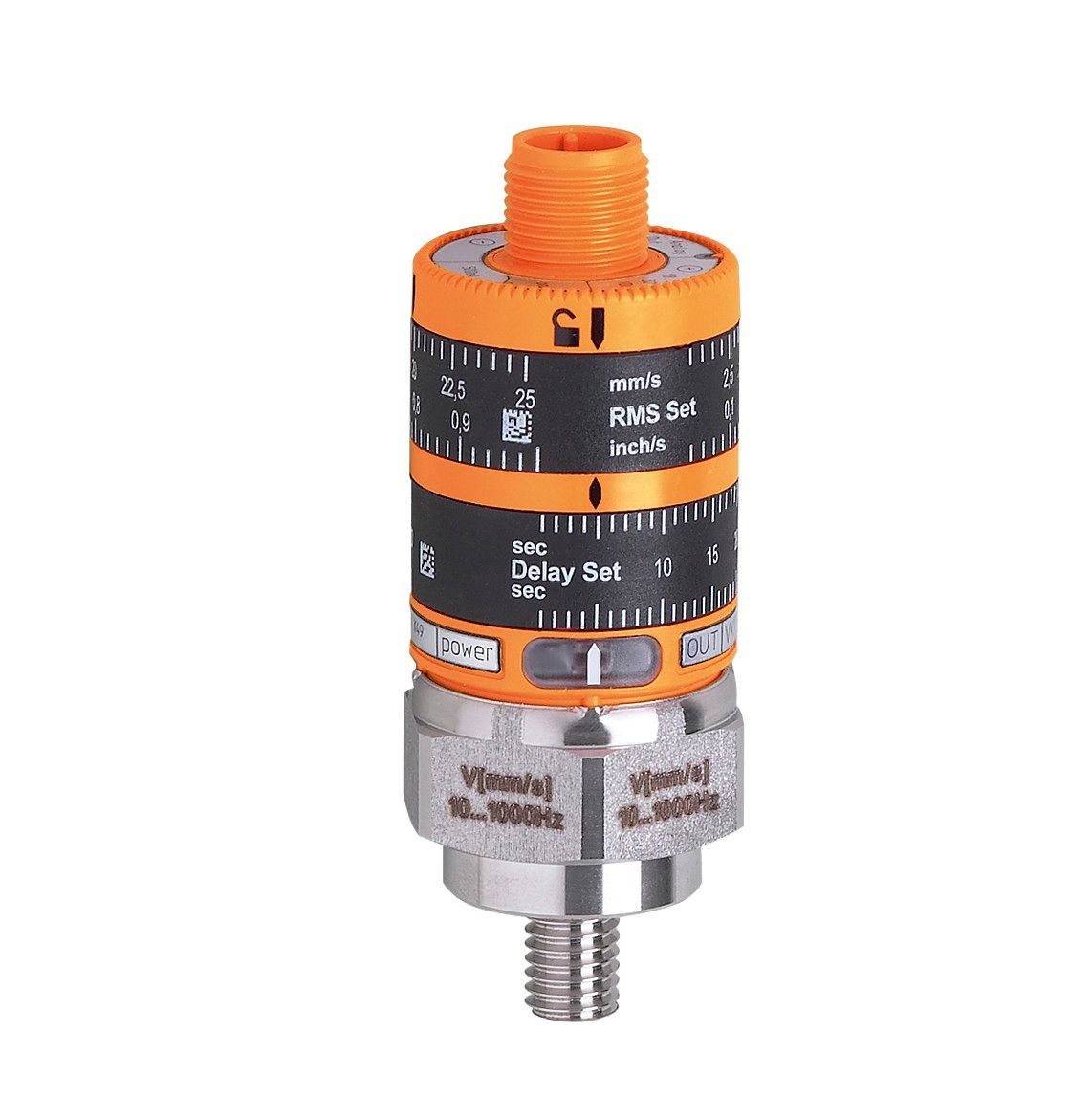

| Product characteristics | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Measuring range of vibration [mm/s] | 0…25; (RMS) | ||||||||
| Frequency range [Hz] | 10…1000 | ||||||||
| Application | |||||||||

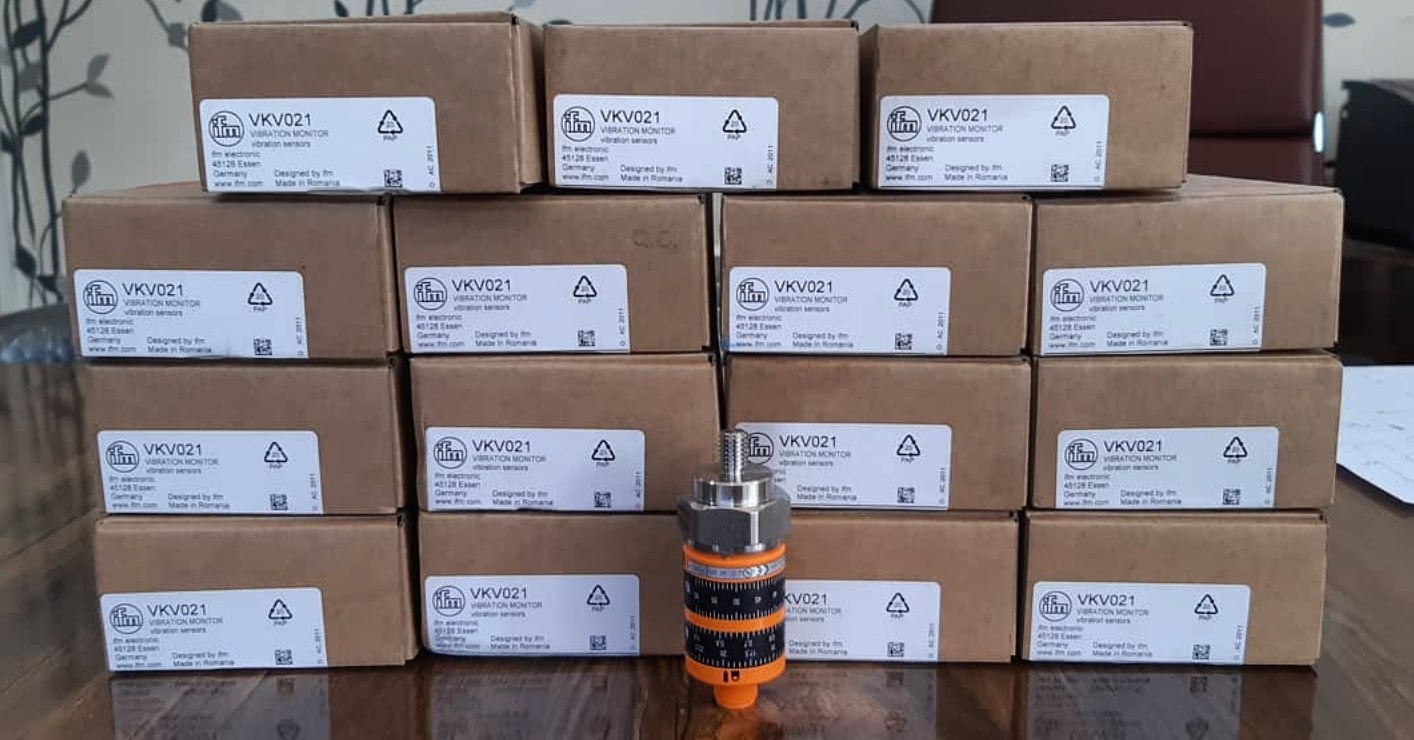

| Application | vibration monitor to DIN ISO 10816 | ||||||||
| Electrical data | |||||||||
| Operating voltage [V] | 18…32 DC | ||||||||
| Current consumption [mA] | < 50 | ||||||||
| Protection class | III | ||||||||
| Sensor type | microelectromechanical system (MEMS) | ||||||||
| Inputs / outputs | |||||||||
| Total number of inputs and outputs | 2 | ||||||||
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 | ||||||||
| Outputs | |||||||||
| Output signal | switching signal; analogue signal | ||||||||
| Electrical design | PNP | ||||||||
| Number of digital outputs | 1 | ||||||||
| Output function | normally closed | ||||||||
| Max. voltage drop switching output DC [V] | 2 | ||||||||
| Permanent current rating of switching output DC [mA] | 500 | ||||||||
| Number of analogue outputs | 1 | ||||||||
| Analogue current output [mA] | 4…20 | ||||||||
| Max. load [Ω] | 500 | ||||||||
| Short-circuit protection | yes | ||||||||
| Type of short-circuit protection | pulsed | ||||||||
| Overload protection | yes | ||||||||
| Measuring/setting range | |||||||||
| Measuring range of vibration [mm/s] | 0…25; (RMS) | ||||||||
| Frequency range [Hz] | 10…1000 | ||||||||
| Number of measurement axes | 1 | ||||||||
| Accuracy / deviations | |||||||||
| Measuring error [% of the final value] | < ± 3 | ||||||||
| Switch point accuracy | < ±4; (% of the final value) | ||||||||
| Repeatability | < 0,5; (% of the final value) | ||||||||
| Linearity deviation | 0,25 % | ||||||||
| Response times | |||||||||
| Response time [s] | 1…60 | ||||||||
| Software / programming | |||||||||
| Adjustment of the switch point | setting ring | ||||||||
| Operating conditions | |||||||||
| Ambient temperature [°C] | -25…80 | ||||||||
| Note on ambient temperature |
|
||||||||
| Storage temperature [°C] | -25…80 | ||||||||
| Protection | IP 67 | ||||||||
| Tests / approvals | |||||||||
| EMC |
|
||||||||
| Shock resistance |
|
||||||||
| MTTF [years] | 510 | ||||||||
| Mechanical data | |||||||||
| Weight [g] | 113.5 | ||||||||
| Type of mounting | M8 x 1,25 | ||||||||
| Materials | PBT; PC; FKM; stainless steel (1.4404 / 316L) | ||||||||
| Tightening torque [Nm] | 15 | ||||||||
| Displays / operating elements | |||||||||
| Display |
|
||||||||
| With scale | yes | ||||||||
| Operating elements |
|
||||||||
| Remarks | |||||||||
| Pack quantity | 1 pcs. | ||||||||
