| Sensor/ detection principle | Photoelectric proximity sensor, Energetic |

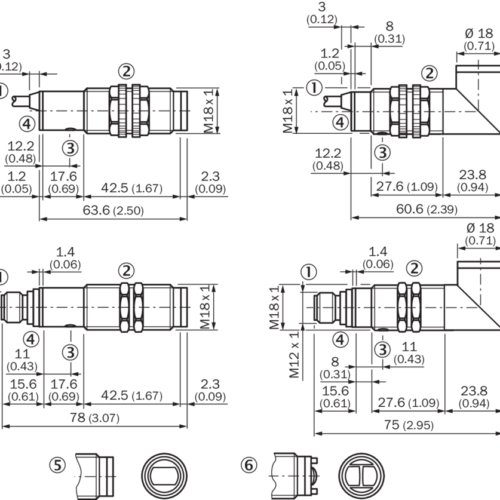

| Dimensions (W x H x D) | 18 mm x 18 mm x 78 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 78 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 5 mm … 400 mm 1) |
| Sensing range | 5 mm … 350 mm |
| Focus | Approx. 2.8° |
| Type of light | Infrared light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 20 mm (400 mm) |
| Angle of dispersion | Approx. 2.8° |
| Adjustment | Potentiometer, 270° (Sensing range) |
