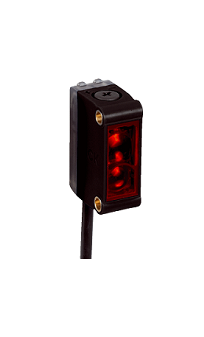

| Device type | Photoelectric sensors | ||||||||
| Functional principle | Photoelectric proximity sensor | ||||||||
| Functional principle detail | Background suppression | ||||||||
| Sensing range max. | 5 mm … 450 mm 1) | ||||||||
| Sensing range | 50 mm … 450 mm | ||||||||
| Polarisation filters | No | ||||||||
|
|||||||||
|
|||||||||
| Adjustment | Mechanical spindle, 5 turns | ||||||||
| Supply voltage UB | 10 V DC … 30 V DC 1) | ||||||||||||
| Ripple | ± 10 % 2) | ||||||||||||
| Power consumption | 30 mA 3) | ||||||||||||
| Protection class | III | ||||||||||||
|
|||||||||||||
| Switching mode | Light/dark switching | ||||||||||||
| Switching mode selector | Selectable via light/dark selector | ||||||||||||
